Focus In
- Multi-Layered Construction: Take the advantages of geotextiles for filtration, separation, and reinforcement as well as geomembranes for waterproofing.
- Great Durability and Strength: Geocomposites provide strong resistance to puncturing, UV degradation, and chemical exposure.
- Reasonable Water and Pollutant Administration: With a barrier of impermeable geomembrane layer, geocomposites prohibit the passage of water, leachate, and contaminants.
- Can be Applied in Various Industries: Fit the antiseepage projects of landfills, oil spill containment, and agricultural ponds, etc.
- Cost-Effective and Good Reliability: Geocomposites are more reasonable substitutes for multiple layers of materials.

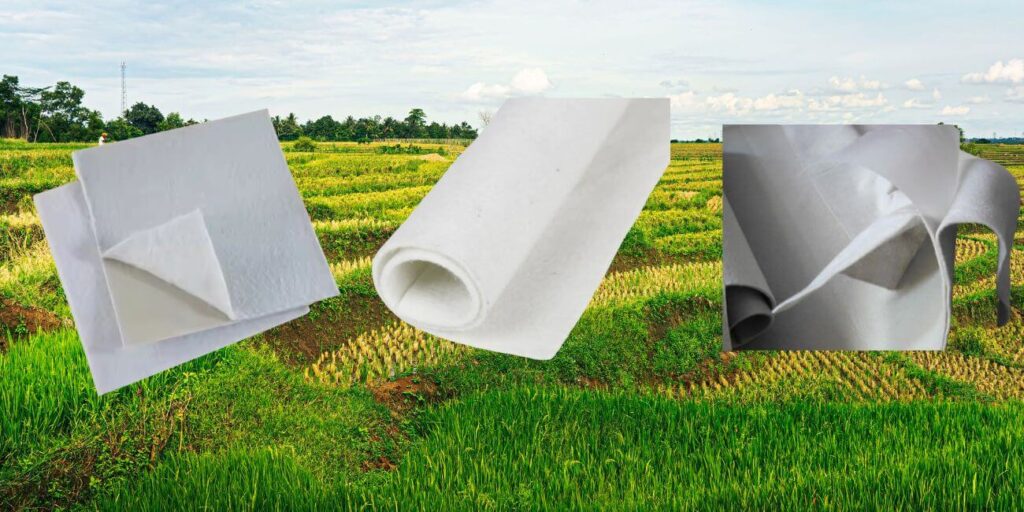

What are Geocomposites?
Geocomposites, also referred to as composite geomembranes, are man-made geosynthetics that are designed to experience the best of both worlds – geotextiles and geomembranes. These multiple membranes are specifically built to the highest standard of waterproofing while being able to also perform the roles of filtration, separation, and reinforcement which makes the most popular among civil engineering and environmental professionals. These are the three types of composite geomembrane products that we provide with their respective designs and applications below.

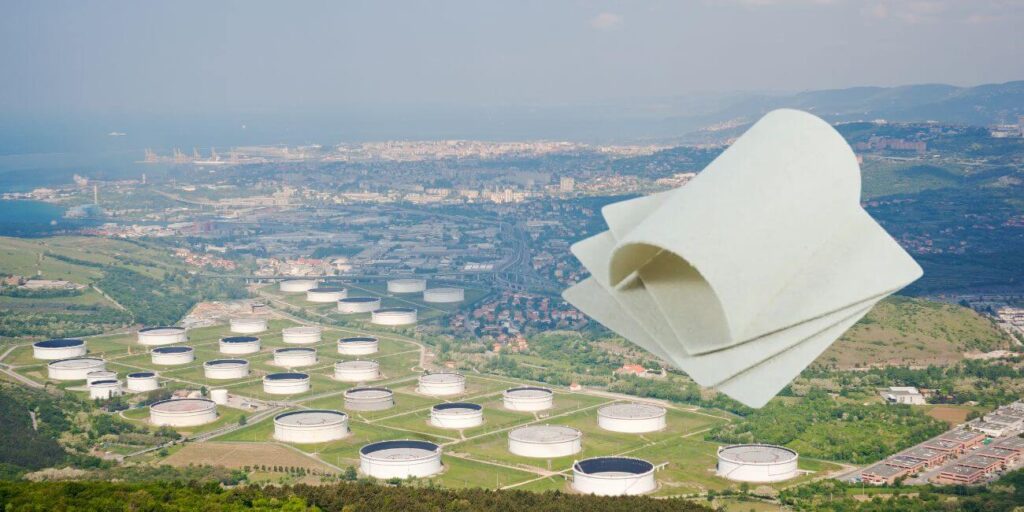

What are Two Geotextiles with One Geomembrane?
This type is composed of two sheets of geotextiles & one sheet of geomembrane. The geotextiles, which are the first two layers in the structure, enable this product to have a large elongation and a high stiffness. On the other hand, the geomembrane which is the third layer of the product, acts as a waterproof barrier, enhancing its impermeability, which stops liquids or contaminants from migrating.
Main Applications
- Landfill Liners: The flawless waterproofing capability of the method that prevents leakage from the landfill ensures that the landfill will not pollute the surrounding environment.
- Environmental Containment Systems: These safety measures are the means of keeping the environment safe from hazardous materials and thus avoiding waste incidents.
- Soil Stabilization: Majorly, the need for stabilization and separation of soil which suits large aircraft loading occupies the geotechnical space.
- Agricultural Applications: The uses cut across both storage of water and irrigation through lining the channels, ponds, and reservoirs.
What are Three Geotextiles with Two Geomembranes?
This complex is formed of three geotextile layers and two geomembrane layers. It provides the base genuine membrane layer along with the extra layers, making it the best solution for the strength, durability, and impermeability issue. This structure tops other geocomposites in the area when it comes to very high demand applications that need the best filtration and waterproofing.
Main Applications
- Large-Scale Containment Systems: You can deploy them in places such as landfills, sewage facilities, and large flat surfaces and applications that need to have earth covered.
- Oil and Chemical Spill Control: It has enhanced the resistance to the chemicals and oils which makes it appropriate for the environmental protection in oil refineries and chemical plants.
- Reservoirs and Dams: The extrusion coating technology, however, provides the component with stability and therefore minimizes the risk of liquid permeation or contamination.
- Infrastructure Projects: For the projects related to engineering foundations, the geotextile bituminous membrane would serve a greater need.
What are One Geotextile with One Geomembrane?
It is the simplest one which is just one-ply geotexile and one-ply geomembrane. This summary arrangement, in spite of its novelty, still provides filtering, separating, and waterproofing the desired way for each case.
(Source: https://youtu.be/boVEye9GnU4)
Main Applications
- Small-Scale Drainage Systems: The membrane trenches used in the drainage system are another great option where the drainage is made in such a way that the soil filters it and is waterproofed naturally.
- Agricultural Ponds: The covering of small ponds or small reservoirs is the most efficient and cost-effective way to prevent water from draining away within agricultural applications.
- Erosion Control: The current membranes applied for the purpose enable the users to stabilize the ground so that it does not collapse and, also, look nice for a longer time.
- Simple Containment Applications: The company should have a plan even if the population is small, such as controlling stormwater and rehabilitating the land.
All our multilayered geomembranes are engineered to deliver the best compromise between mechanical strength, water impenetrability, and versatility for the particular requirements of your project. No matter if you are in the market for durably secured containment systems or a rather simple configuration that would be perfect for small-scale projects, we have the perfect specifications which we have been able to achieve addressing both environmental and engineering problems.
Geocomposites FAQs
1. What are composite geomembranes and which configurations do you offer?
Geocomposites are a tandem of geotextiles and geomembranes that are a multi-layered composite, having two geotextiles with a geomembrane, three geotextiles with two geomembranes, and one geotextile with one geomembrane.
2. What certifications and quality standards do your geocomposites meet?
We make use of highly effective quality control systems as well as compliance with certifications and standards important for durability, waterproofing, and performance throughout the entire product life cycle.
3. What are the primary applications and performance benefits of using geocomposites?
Geocomposites are utilized for landfill liners, environmental containment, water reservoirs, road construction, and more—providing services like high filtration, separation, reinforcement, and impermeability.
4. What is the typical lead time and order quantity for bulk purchases?
We have designed our products to be made to order with lead times longer than those of others whose order quantities are more and thus sufficient to satisfy the requirements of wholesalers and distributors in various market segments.
5. What technical support, warranty, and installation guidance do you provide?
We give you the framework to work around these as you implement our composite geomembranes through our invaluable technical support, while also delivering sound installation guidelines and offering unmatched warranty options to further guarantee the result of total quality implementation provided.
Test Properties | Unit | XYG4 | XYG5 | XYG6 | XYG7 | XYG8 | |
Weight | g/㎡ | 400 | 500 | 600 | 700 | 800 | |
Film Thickness | mm | 0.25-0.35 | 0.25-0.35 | 0.25-0.35 | 0.30-0.50 | 0.30-0.50 | |
Mechanical Properties | Break Strength | kN/m | 5.0 | 7.5 | 10.0 | 12.0 | 14.0 |
Break Elongation | % | 30-100 | 30-100 | 30-100 | 30-100 | 30-100 | |
CBR Burst Strength | KN | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | |
Tear Resistance | KN | 0.15 | 0.25 | 0.32 | 0.40 | 0.48 | |
Peeling Strength | N/cm | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | |
Hydrostatic Pressure | Membrane Thickness | mm | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 |
One Geotextile One Membrane | MPa | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 | |
Two Geotextiles One Membrane | MPa | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 |
Item Type | Thickness | Roll Size (Width*Length) |
GM XY050 | 0.50 mm | 7 m*420 m |
GM XY075 | 0.75 mm | 7 m*280 m |
GM XY100 | 1.00 mm | 7 m*210 m |
GM XY125 | 1.25 mm | 7 m*168 m |
GM XY150 | 1.50 mm | 7 m*140 m |
GM XY200 | 2.00 mm | 7 m*105 m |
GM XY250 | 2.50 mm | 7 m*84 m |
GM XY300 | 3.00 mm | 7 m*70 m |
Item Type | Rolls (In a 40HC Container) | Quantity (In a 40HC Container) |
GM XY050 | 17 | 49980 ㎡ |
GM XY075 | 17 | 33320 ㎡ |
GM XY100 | 17 | 24990 ㎡ |
GM XY125 | 17 | 19992 ㎡ |
GM XY150 | 17 | 16660 ㎡ |
GM XY200 | 17 | 12495 ㎡ |
GM XY250 | 17 | 9996 ㎡ |
GM XY300 | 17 | 8330 ㎡ |
